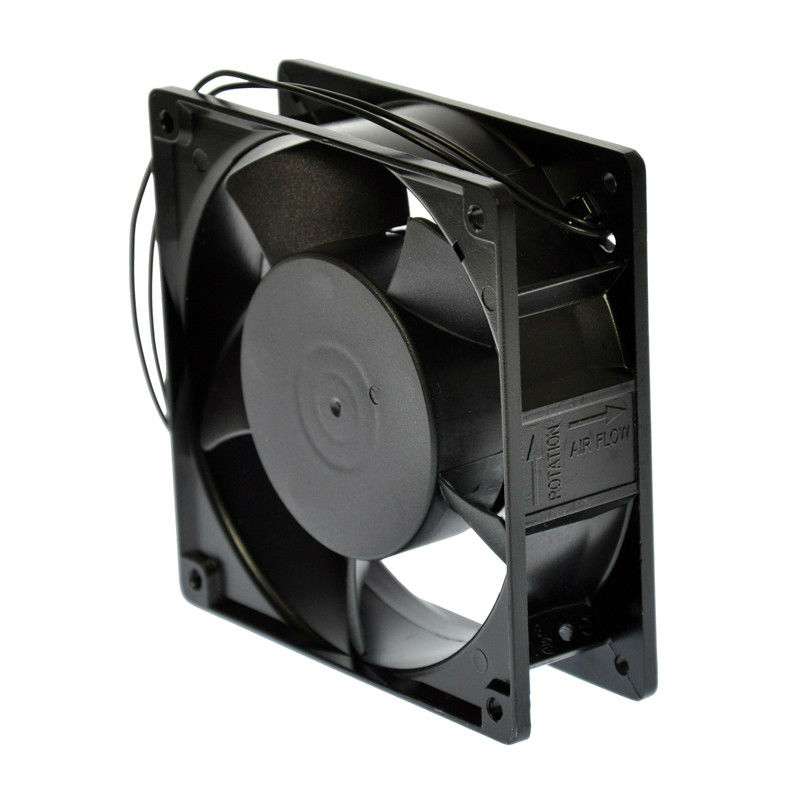

Axial Fan Motor - Lead - 40m³/hr - 23DBA
These axial mini shaded fan motors have a compact structure and small volume.
These axial mini shaded fan motors have a compact structure and small volume. These fans are made out of reinforced plastic so are light weight, low noise and are used on refrigeration equipment, bottle coolers, vending machines and other ventilating and cooling equipment.
- Individually boxed complete with fixings.
- Ambient operating temperature -20°C to +60°C.>
- Average service life 30,000 hours.
- Air flow from 40m³/hr – 132m³/hr.
- CE certified / ROHS2 compliant.
- 12 month warranty.
FM-A-8038-L
Data sheet
- Voltage Supply
- 240V
- Motor Output Power:
- 15W
- Motor Run Speed:
- 2200RPM
- Cable Length:
- 300mm
- Connection:
- Lead
- Height:
- 80mm
- Width:
- 80mm
- Depth:
- 38mm
- Air Flow:
- 40m³/hr
- dB(A) Rating:
- 23.4 dB(A)
