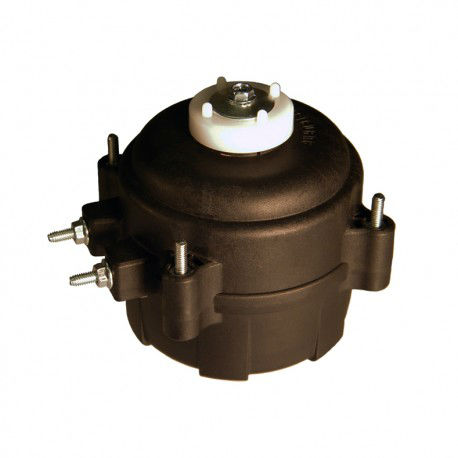

ECM Fan Motor over 172mm dia blade View larger

£ 42.33

ECM Fan Motor over 172mm dia blade

FM-ECM-7112

New

Pump House


B B

Send to a friend

ECM Fan Motor over 172mm dia blade

ECM Fan Motor over 172mm dia blade

These energy efficient ECM electronically commuted motors are far more efficient that the conventional shaded pole motor.

Recipient :

* Required fields

  or  Cancel

Features

More info

Reviews

Download

Data sheet

Voltage Supply240V
Motor Output Power:2.5W ~ 23.5W
Motor Run Speed:4 Pole (1300RPM)
Shaft Mounting:Fan Hub
Shaft Rotation:ACW
Mount Drive End:4 Studs
Side Mount:2 Studs
Cable Length:450mm

More info

These energy efficient ECM electronically commuted motors are far more efficient that the conventional shaded pole motor. The ECM's provide the same output performance with input power reductions of up to 70%. This saves energy and reduces the mount of CO² emissions.

These plastic housing motors run cool, are IP65 rated and will directly replace a standard multi-fit refrigeration motor.

  • Individually boxed complete with fixings.
  • Ambient operating temperature -30°C to +50°C.
  • Maintenance free with ball bearing sleeve to extend the life and provide quiet operation.
  • Direct replacement for standard multi-fit refrigeration motors.
  • Motor has over current, over & under voltage protection.
  • IP 65 rated / 45omm power cord.
  • CE certified / ROHS compliant.
  • 12 month warranty.

High Efficiency Table

Reviews

No customer comments for the moment.

Write a review

ECM Fan Motor over 172mm dia blade

ECM Fan Motor over 172mm dia blade

These energy efficient ECM electronically commuted motors are far more efficient that the conventional shaded pole motor.

Download

PH ECM Fan Motors

Pump House ECM motor specification sheet.

Download (1.84M)
